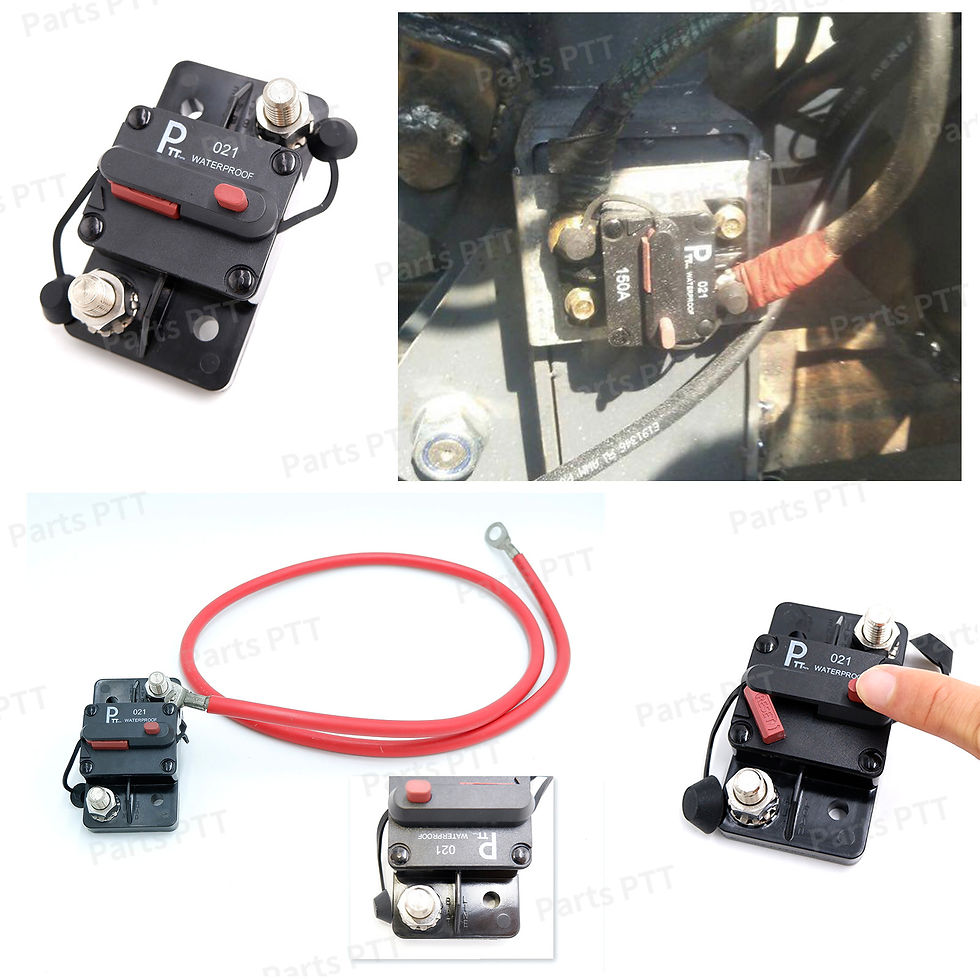

12V- 48VDC,Waterproof Circuit Breakers 180A-250A
P004-021-0018（180A）
P004-021-0020（200A）
P004-021-0025（250A）
Compliant with S.A.E. J1625, J1171, UL1500, CE, IP67, waterproof housing, splash-proof and dust-proof
-32C to 82C (-25F to 180F). 3000A @ 48Vdc, 2,500A @ 14Vdc (25-150A)
1/4"-28 Stud, Nut: Stainless Steel. Manual Reset Type: T3+ Switch, Body: UL Class 94V0
Allows 70VDC through to 200%. Typically used in DC power systems in marine, truck, and RV applications to provide additional protection for accessories
Easy to install, but professional installation is highly recommended. Includes surface mount protective stud insulator
