In-Line Fuse Holder for ATP Fuse | 30A Max, PVC Body, Brass Terminal, UL1015 12 AWG Wire
Photo-Top C001-028-0102 In-Line Fuse Holder for ATP fuse, designed for automotive and electrical circuit protection. Features 30A max rating, PVC insulation body, brass terminal, and UL1015 12# AWG wire with 6-inch leads on each end.

Product Overview
In-Line Fuse Holder for ATP Fuse
Photo-Top C001-028-0102 In-Line Fuse Holder for ATP Fuse is a practical solution for automotive wiring, electrical circuit protection, and wiring harness applications. Designed with a 30A maximum current rating, PVC insulation body, brass terminal, and UL1015 12# AWG wire with 6-inch leads on each end, this inline fuse holder helps add fuse protection directly into the circuit when a fuse block is not required or not convenient to install.

Key Features
30A Max Current Rating
Designed for circuit protection applications up to 30A MAX.
PVC Insulation Body
The fuse holder body is made with PVC insulation material, suitable for general electrical insulation needs.
Brass Terminal
Built with brass terminals for electrical connection.
UL1015 12# AWG Wire
Comes with UL1015 12# AWG wire, suitable for in-line wiring connection.
6-Inch Wire Leads on Each End
The product includes wire leads with 6 inches on each end, making it easier to connect into wiring systems.
Compact In-Line Design

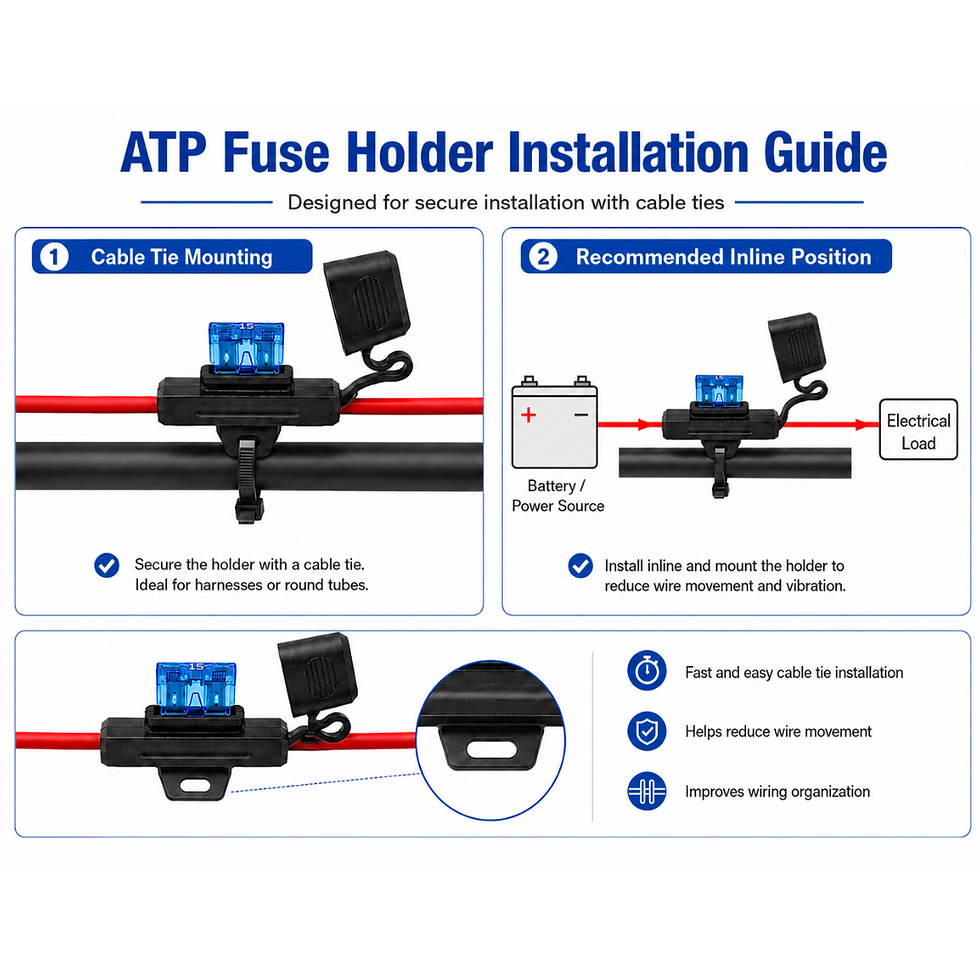

The in-line structure allows the fuse holder to be installed directly along the wire path.

Applications
Automotive Electrical Circuits
Suitable for automotive wiring and general vehicle circuit protection.
Motorcycle / ATV Wiring
Can be used in compact wiring layouts where in-line fuse protection is required.
RV / Camper Electrical Accessories
Suitable for low-voltage accessory circuit protection in RV or camper electrical systems.
Marine / Boat Electrical Wiring
Can be used for boat electrical circuit protection when the installation environment and protection level are properly evaluated.
Power Equipment / Electrical Accessories
Suitable for general electrical equipment wiring where an in-line fuse holder is needed.


Product Specifications
Item
Specification
Product Name
In-Line Fuse Holder FOR ATP FUSE HOLDER
Part No.
C001-028-0102
Electrical Rating
30A MAX
Insulation Body
PVC
Terminal
Brass
Wire Gauge
UL1015 12# AWG
Wire Length
6 inch each end
Product Type
In-Line Fuse Holder
Application
Automotive / electrical circuit protection


Q1: What is this product used for?
This in-line fuse holder is used to add fuse protection directly into an electrical wiring circuit.
Q2: What is the maximum current rating?
The maximum current rating is 30A MAX.
Q3: What wire gauge does it use?
It uses UL1015 12# AWG wire.
Q4: What is the body material?
The insulation body is made of PVC.
Q5: What is the terminal material?
The terminal material is brass.
